Release Groups#
[This note-book is in oceantracker/tutorials_how_to/]
A release group is a set of particles released at the same times and location. There can be many release groups. This enables the fate of particles from different origins to be tracked separately within the same computational run. Importantly, on the fly statistics are separated into release groups. Eg. gridded statistics return a heat map for each release group, while polygon statistics give the connectivity between each given polygon and each release group.
A release group may be a:
“point_releases” set points, giving one or more 2D or 3D locations where particles are released. A radius for 2D release around theses point also can be set.
“polygon release”, where particles are released randomly within polygon made up of 3 or more 2D points. Particles will not be released in any parts of the polygon outside the domain.
“grid_release”, particles released from points on a regular grid.
For polygons, the vertical release location is randomly chosen in the water column, or user a given in z range. If the z value of a point release is not given, then the vertical release location is chosen in the same manner.
For both types user can specify:
time to start and end the release, or the duration of the release. Defaults are to start at beginning of hindcast and continue until it’s end.
the time between releases, the “release_interval”, a zero value gives a single release.
the number of particles release each time, the “pulse_size”
whether to release in dry cells, default “allow_release_in_dry_cells” = False
Plus other options see:
add links…
# Notes for debugging if the scripts below fail:
# * These scripts assume that you already installed oceantracker. If you didn't take a look at https://oceantracker.github.io/oceantracker/_build/html/info/installing.html
# * Paths in this directory are relative to the location of the ipython notebook.
# I.e. On Linux or Mac, running a cell with "!ls" should return a list containing the notebook you are running.
# Checks if the hindcast data is available and downloads them if not
from oceantracker.util.download_data import download_hindcast_data_for_tutorials
download_hindcast_data_for_tutorials()
Hindcast data found locally at ./demo_hindcast
# show example of release types with start and end times,
# ------------------------------------------------
from oceantracker.main import OceanTracker
import os
ot = OceanTracker()
# ot.settings method use to set basic settings
ot.settings(
run_output_dir=os.path.join("output", "release_groups"),
time_step=120.0, # 2 min time step as seconds
)
# ot.set_class, sets parameters for a named class
ot.add_class(
"reader",
# folder to search for hindcast files, sub-dirs will, by default, also be searched
input_dir="./demo_hindcast/schsim3D",
# hindcast file mask - only read files that follow this pattern
file_mask="demo_hindcast_schisim3D*.nc",
)
# add point release locations from two points,
ot.add_class(
"release_groups",
class_name="PointRelease", # point is the default so this is technically not needed for point release
points=[
[1595000, 5482600, -1], # [x,y,z(optional)] pairs of release locations
[1595000, 5486200, -1],
], # must be an N by 2 or 3 or list, convertible to a numpy array
release_interval=1800, # seconds between releasing particles
pulse_size=10, # number of particles released each release_interval
)
# add a polygon release
ot.add_class(
"release_groups",
class_name="PolygonRelease", # class to use
# (x,y) points making up a 2D polygon
points=[
[1597682.0, 5486972],
[1598604, 5487275],
[1598886, 5486464],
[1597917.0, 5484000],
[1597300, 5484000],
[1597682, 5486972],
],
# the below are optional settings/parameters
release_interval=3600,
pulse_size=10,
z_min=-2.0,
z_max=0.5,
) # set a z range to release, in default is full water depth
ot.add_class(
"release_groups",
class_name="GridRelease", # class to use
start="2017-01-01T02:30:00", # optional start and end times
grid_center=[1592000, 5489200], # location of grid centre
grid_span=[500, 1000], # size of grid in meters
grid_size=[3, 4], # rows and columns in grid
release_interval=1800,
pulse_size=2,
z_min=-2,
z_max=-0.5,
) # release at random depth between these values
# run oceantracker
case_info_file_name = ot.run()
prelim: Starting package set up
helper: ----------------------------------------------------------------------
helper: Starting OceanTracker helper class, version 0.5.2.55
helper: Python version: 3.11.14 | packaged by conda-forge | (main, Oct 22 2025, 22:46:25) [GCC 14.3.0]
helper: ----------------------------------------------------------------------
helper: OceanTracker version 0.5.2.55 starting setup helper "main.py":
helper: Started
helper: Output is in dir "/home/ls/projects/oceantracker_dev/oceantracker/tutorials_how_to/output/release_groups"
helper: hint: see for copies of screen output and user supplied parameters, plus all other output
helper: >>> Note: to help with debugging, parameters as given by user are in "raw_user_params.json"
helper: ----------------------------------------------------------------------
helper: Numba setup: applied settings, max threads = 32, physical cores = 32
helper: hint: cache code = False, fastmath= False
helper: ----------------------------------------------------------------------
loading oceantracker read files
helper: - Built OceanTracker package tree, 1.013 sec
helper: - Built OceanTracker sort name map, 0.000 sec
helper: - Done package set up to setup ClassImporter, 1.013 sec
setup: ----------------------------------------------------------------------
setup: OceanTracker version 0.5.2.55
setup: Starting user param. runner at 2026-01-21T17:40:48.953420
setup: ----------------------------------------------------------------------
setup: - Start field group manager and readers setup
setup: - Found input dir "./demo_hindcast/schsim3D"
setup: - Detected reader class_name = "oceantracker.reader.SCHISM_reader.SCHISMreader"
setup: - Starting grid setup
setup: - built node to triangles map, 0.909 sec
setup: - built triangle adjacency matrix, 0.218 sec
setup: - found boundary triangles, 0.001 sec
setup: - built domain and island outlines, 1.161 sec
setup: - calculated triangle areas, 0.000 sec
setup: - Finished grid setup
setup: --- Hindcast info ----------------------------------------------------
setup: Hydro-model is "3D", type "SCHISMreader"
setup: hint: Files found in dir and sub-dirs of "./demo_hindcast/schsim3D"
setup: Geographic coords = "False"
setup: Hindcast start: 2017-01-01T00:30:00 end: 2017-01-01T23:30:00
setup: time step = 0 days 1 hrs 0 min 0 sec, number of time steps= 24
setup: grid bounding box = [1589789.000 5479437.000] to [1603398.000 5501640.000]
setup: has: A_Z profile=True, bottom stress=False, regrid to sigma=True
setup: vertical grid type = "LSC", using vertical grid "Sigma"
setup: ----------------------------------------------------------------------
setup: - Built barycentric-transform matrix, 0.369 sec
setup: - Loading reader fields ['water_depth', 'tide', 'water_velocity']
setup: - Finished field group manager and readers setup, 4.954 sec
setup: ----------------------------------------------------------------------
setup: - Added 3 release group(s) and found run start and end times, 5.693 sec
setup: - Starting initial setup of all classes
setup: - Done initial setup of all classes, 0.004 sec
setup: ----------------------------------------------------------------------
setup: - Starting "release_groups", duration: 0 days 23 hrs 0 min 0 sec
setup: From 2017-01-01T00:30:00 to 2017-01-01T23:30:00
setup: Time step 120.0 sec
setup: using: A_Z_profile = False, bottom_stress = False
setup: ----------------------------------------------------------------------
setup: - Reading 24 time steps, for hindcast time steps 00:23 into ring buffer offsets 000:023 , for run "None"
setup: - read 24 time steps in 1.5 sec, from ./demo_hindcast/schsim3D
setup: - Starting time stepping: 2017-01-01T00:30:00 to 2017-01-01T23:30:00
setup: duration 0 days 23 hrs 0 min 0 sec, time step= 0 days 0 hrs 2 min 0 sec
S: - Opened tracks output and done written first time step in: "tracks_compact_000.nc", 0.130 sec
S: 0000: 00%:H0000b00-01 Day +00 00:00 2017-01-01 00:30:00: Rel:30 : Active:30 Move:30 Bottom:0 Strand:0 Dead:0 Out: 0 Buffer: 1% step time = 10598.0 ms
S: 0030: 04%:H0001b01-02 Day +00 01:00 2017-01-01 01:30:00: Rel:78 : Active:78 Move:78 Bottom:0 Strand:0 Dead:0 Out: 0 Buffer: 3% step time = 7.2 ms
S: 0060: 09%:H0002b02-03 Day +00 02:00 2017-01-01 02:30:00: Rel:151 : Active:151 Move:150 Bottom:0 Strand:1 Dead:0 Out: 0 Buffer: 6% step time = 341.2 ms
S: 0090: 13%:H0003b03-04 Day +00 03:00 2017-01-01 03:30:00: Rel:239 : Active:239 Move:213 Bottom:0 Strand:26 Dead:0 Out: 0 Buffer:10% step time = 14.3 ms
S: 0120: 17%:H0004b04-05 Day +00 04:00 2017-01-01 04:30:00: Rel:314 : Active:314 Move:288 Bottom:0 Strand:26 Dead:0 Out: 0 Buffer:14% step time = 11.3 ms
S: 0150: 22%:H0005b05-06 Day +00 05:00 2017-01-01 05:30:00: Rel:391 : Active:391 Move:365 Bottom:0 Strand:26 Dead:0 Out: 0 Buffer:17% step time = 8.8 ms
S: 0180: 26%:H0006b06-07 Day +00 06:00 2017-01-01 06:30:00: Rel:468 : Active:468 Move:442 Bottom:0 Strand:26 Dead:0 Out: 0 Buffer:21% step time = 14.6 ms
S: 0210: 30%:H0007b07-08 Day +00 07:00 2017-01-01 07:30:00: Rel:545 : Active:545 Move:519 Bottom:0 Strand:26 Dead:0 Out: 0 Buffer:24% step time = 12.8 ms
S: 0240: 35%:H0008b08-09 Day +00 08:00 2017-01-01 08:30:00: Rel:623 : Active:623 Move:597 Bottom:0 Strand:26 Dead:0 Out: 0 Buffer:28% step time = 10.1 ms
S: 0270: 39%:H0009b09-10 Day +00 09:00 2017-01-01 09:30:00: Rel:710 : Active:710 Move:709 Bottom:0 Strand:1 Dead:0 Out: 0 Buffer:32% step time = 11.0 ms
S: 0300: 43%:H0010b10-11 Day +00 10:00 2017-01-01 10:30:00: Rel:808 : Active:808 Move:808 Bottom:0 Strand:0 Dead:0 Out: 0 Buffer:36% step time = 14.5 ms
S: 0330: 48%:H0011b11-12 Day +00 11:00 2017-01-01 11:30:00: Rel:905 : Active:905 Move:905 Bottom:0 Strand:0 Dead:0 Out: 0 Buffer:40% step time = 14.6 ms
S: 0360: 52%:H0012b12-13 Day +00 12:00 2017-01-01 12:30:00: Rel:1,003: Active:1,003 Move:1,003 Bottom:0 Strand:0 Dead:0 Out: 0 Buffer:45% step time = 12.6 ms
S: 0390: 57%:H0013b13-14 Day +00 13:00 2017-01-01 13:30:00: Rel:1,101: Active:1,101 Move:1,076 Bottom:0 Strand:25 Dead:0 Out: 0 Buffer:49% step time = 11.0 ms
S: 0420: 61%:H0014b14-15 Day +00 14:00 2017-01-01 14:30:00: Rel:1,198: Active:1,198 Move:1,155 Bottom:0 Strand:43 Dead:0 Out: 0 Buffer:54% step time = 12.1 ms
S: 0450: 65%:H0015b15-16 Day +00 15:00 2017-01-01 15:30:00: Rel:1,285: Active:1,285 Move:1,157 Bottom:0 Strand:128 Dead:0 Out: 0 Buffer:58% step time = 11.2 ms
S: 0480: 70%:H0016b16-17 Day +00 16:00 2017-01-01 16:30:00: Rel:1,363: Active:1,363 Move:1,224 Bottom:0 Strand:139 Dead:0 Out: 0 Buffer:61% step time = 15.1 ms
S: 0510: 74%:H0017b17-18 Day +00 17:00 2017-01-01 17:30:00: Rel:1,441: Active:1,441 Move:1,290 Bottom:0 Strand:151 Dead:0 Out: 0 Buffer:65% step time = 15.4 ms
S: 0540: 78%:H0018b18-19 Day +00 18:00 2017-01-01 18:30:00: Rel:1,519: Active:1,519 Move:1,368 Bottom:0 Strand:151 Dead:0 Out: 0 Buffer:68% step time = 10.8 ms
S: 0570: 83%:H0019b19-20 Day +00 19:00 2017-01-01 19:30:00: Rel:1,595: Active:1,595 Move:1,447 Bottom:0 Strand:148 Dead:0 Out: 0 Buffer:72% step time = 10.8 ms
S: 0600: 87%:H0020b20-21 Day +00 20:00 2017-01-01 20:30:00: Rel:1,673: Active:1,673 Move:1,536 Bottom:0 Strand:137 Dead:0 Out: 0 Buffer:75% step time = 16.5 ms
S: 0630: 91%:H0021b21-22 Day +00 21:00 2017-01-01 21:30:00: Rel:1,759: Active:1,759 Move:1,716 Bottom:0 Strand:43 Dead:0 Out: 0 Buffer:79% step time = 10.9 ms
S: 0660: 96%:H0022b22-23 Day +00 22:00 2017-01-01 22:30:00: Rel:1,856: Active:1,856 Move:1,831 Bottom:0 Strand:25 Dead:0 Out: 0 Buffer:83% step time = 19.9 ms
S: 0690: 100%:H0022b22-23 Day +00 23:00 2017-01-01 23:30:00: Rel:1,954: Active:1,954 Move:1,954 Bottom:0 Strand:0 Dead:0 Out: 0 Buffer:88% step time = 14.6 ms
S: --- Closing all classes ----------------------------------------------
S: Converting compact track files to rectangular format (to disable set reader param convert=False)
S: hint: reading from dir /home/ls/projects/oceantracker_dev/oceantracker/tutorials_how_to/output/release_groups
S: - Finished "tracks_rectangular_000.nc", 0.147 sec
S: - Conversion complete, 0.147 sec
S: Removing compact track files output after conversion
end: ----------------------------------------------------------------------
end: Finished "release_groups"
end: Timings: total = 37.3 sec
end: Setup 1.20 s 3.2%
end: Find initial horizontal cell 2.43 s 6.5%
end: Reading hindcast 1.53 s 4.1%
end: Find horizontal cell 2.78 s 7.5%
end: Find vertical cell 1.39 s 3.7%
end: Interpolate fields 2.03 s 5.4%
end: Update custom particle prop. 0.00 s 0.0%
end: Update statistics 0.00 s 0.0%
end: Update event loggers 0.00 s 0.0%
end: RK integration 0.51 s 1.4%
end: Releasing particles 0.50 s 1.3%
end: Close down 5.07 s 13.6%
end: resuspension 0.45 s 1.2%
end: dispersion 0.60 s 1.6%
end: tracks_writer 0.12 s 0.3%
end: ----------------------------------------------------------------------
end: Finished "release_groups", started: 2026-01-21 17:40:47.758155, ended: 2026-01-21 17:41:25.044525
end: Computational time = 0:00:37.286415
end: Max. memory used 111.04 GB
end: --- Issues (check above, any errors repeated below) --------------
end: 0 errors, 0 strong warnings, 0 warnings, 1 notes
end: --- Successful completion: output in "output/release_groups" ---------

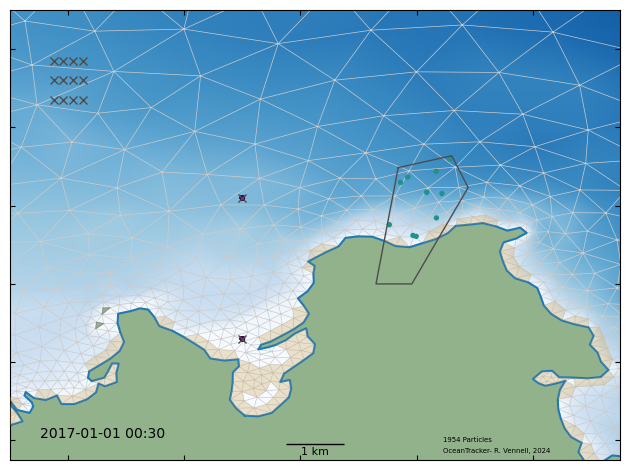

# to plot the tracks:
from oceantracker.read_output.python import load_output_files
from IPython.display import HTML
from oceantracker.plot_output import plot_tracks
# read particle track data into a dictionary using case_info_file_name
tracks = load_output_files.load_track_data(case_info_file_name)
print(tracks.keys()) # show what is in tracks dictionary holds
ax = [1591000, 1601500, 5479500, 5491000] # area to plot
anim = plot_tracks.animate_particles(
tracks,
axis_lims=ax,
show_grid=True,
show_dry_cells=True,
colour_using_data=tracks["IDrelease_group"],
)
# this line only used in note books, in python scripts use show = True above
# this is slow to build!
HTML(anim.to_html5_video()) # this is slow to build!
Merging rectangular track files
Reading rectangular track file "tracks_rectangular_000.nc"
dict_keys(['particles_written_per_time_step', 'time_step_range', 'time', 'num_part_released_so_far', 'x', 'x0', 'status', 'status_last_good', 'age', 'ID', 'IDrelease_group', 'user_release_groupID', 'IDpulse', 'hydro_model_gridID', 'time_released', 'grid_release_row_col', 'water_depth', 'tide', 'dry_cell_index', 'grid', 'particle_status_flags', 'particle_release_groups', 'axis_lim'])
animate_particles: color map limits None None
